Let us introduce the WPC Wall Panel Machine to you.
Introduction:
WPC wall panel machine use mainly use PVC resin material +wood powder and other additives to mix with extruder extrusion technology.

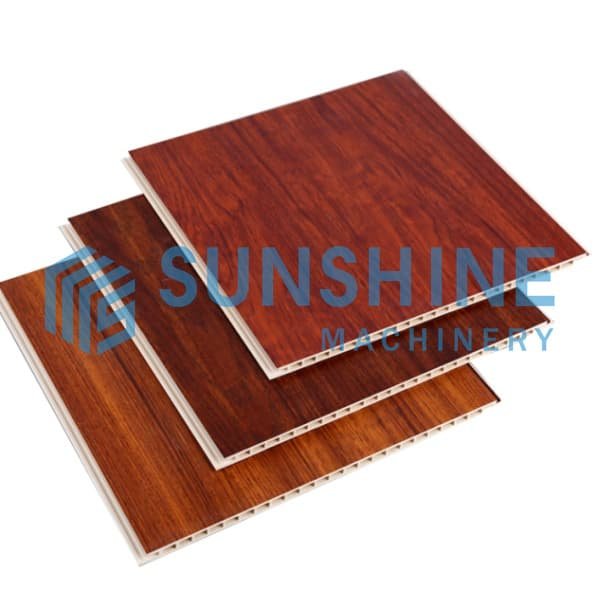

The finished product WPC panel can be 300mm, 400mm, 600mm. It can be customized according to different customer requirement.
Application: Indoor decoration wall panel
Raw material: PVC resin, wood powder and other additives.
Max width: In general most customer would like 400mm, 600mm but according to customer requirement, we can do as the OEM.
Capacity: 150-220 kg/h
Extrusion speed: 6-7 meters/min
Main Consist of Machine:
SJSZ 65/132 double screw extruder
Feeding machine
Die head and mould
Vacuum calibration table
Haul-off machine
Lamination machine
Cut-off machine
Stacker/stacker
Electrical control system
Main technical data
|
Finished product size Width (mm) |
300 | 400 | 600 |
| Twin screw extruder | 48/55 extruder | 65 extruder | 80 extruder |
| Production speed m/min |
3-4m/min | 6-7m/min | 12m/min |
| Material | PVC resin powder, caco3 powder, wood powder etc. additives. |
||
| Production capacity kg/h | 150 | 250 | 450 |
| Motor power kw | 22 | 37 | 55 |
| Barrel heat power kw | 18 | 24 | 36 |
| Central height mm | 1000 | 1000 | 1000 |
Show of machine:
